제품 상세 정보:
|
색: | 푸르거나 오렌지색이고 검습니다 | 사이즈: | 206*97*60mm |
---|---|---|---|
상품 이름: | 하트 루프 교정부 | 모델 부정.: | 빅터 709H |
재료: | 플라스틱, 금속, 실리칼 겔 | 패킹 세부 사항: | 10 PC / 통 ; 통 사이즈 : 39.5*38.5*26cm |
정확성: | 0.01% 정확도 | 중량: | 대략. (배터리를 포함하여) 600 G |
하이 라이트: | IP65 Thermocouple Calibration Equipment,HART Communication Loop Calibrator,VICTOR 709H |

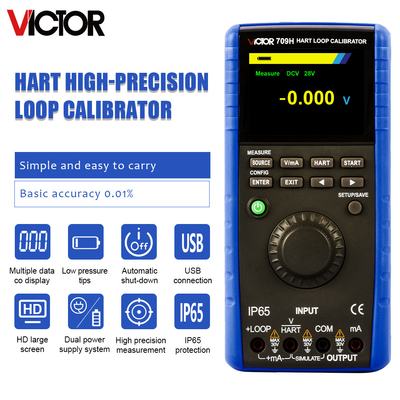

IP65 Thermocouple Calibration Equipment HART Communication Loop Calibrator
VICTOR 709H HART Communication Loop Calibrator With IP65 Protection 0.01% Accuracy 0- 22mA DCA -2.000~28.000V DCV Measurement
Project | Referencemodel Performance parameters |
VICTOR 709H | |
Source | DC current (DCmA) |
Range | 0.000~22.000mA |
Accuracy ±(% of the set value +% of range) |
0.01%+0.015% | ||
Resolution | 1uA | ||
Analog transmitter (SIMULATE) |
Range | 0.000~22.000mA | |
Accuracy ±(% of the set value +% of range) |
0.01%+0.015% | ||
Resolution | 1uA | ||
External power supply | 5 ~ 28V | ||
Measurement | DC voltage (DCV) |
Range | -2.000~28.000V |
Accuracy ±( % of Reading+ % of Range) |
0.01%+0.01% | ||
Resolution | 1mV | ||
DC current (DCmA) |
Range | -4.000~33.000mA | |
Accuracy ±( % of Reading+ % of Range) |
0.01%+0.01% | ||
Resolution | 1uA | ||
Loop power supply (LOOP) |
Range | 24V | |
The maximum current | 22mA | ||
Driving ability | No HART resistance of 1KΩ. HART resistance is 750 Ω. |
||
HART communication | Support HART general instructions and general application instructions. Able to read the device basic information, perform diagnostic testing and calibration to fine tune the most HART transmitter, can store up to 20 HART device configuration file. | ||
Other functions | Protection grade | IP65 | |
Backlight | √ | ||
Backlight brightness adjustment | √ | ||
25%,100%step output | √ | ||
Automatic ramp | √ | ||
Automatic step | √ | ||
mA,%Switch the display | √ | ||
Auto Power-off | √ | ||
Power Adaptation function | √ | ||
Battery Low display | √ | ||
PC online communication | Compatible with infrared isolation USB serial communication interface. Supports industry standard SCPI commands, can realize remote control instrument by the device driver software. |
||
Characteristic | |||
Electrical safety | EN61010-1:2001 | ||
Insulation | DC500V /50MΩ | ||
EMC | EN61326-1:2006 | ||
Authentication | CE | ||
Display | 3.2 inch TFT color display | ||
Power supply | 4×1.5V AA Alkaline battery / adapter | ||

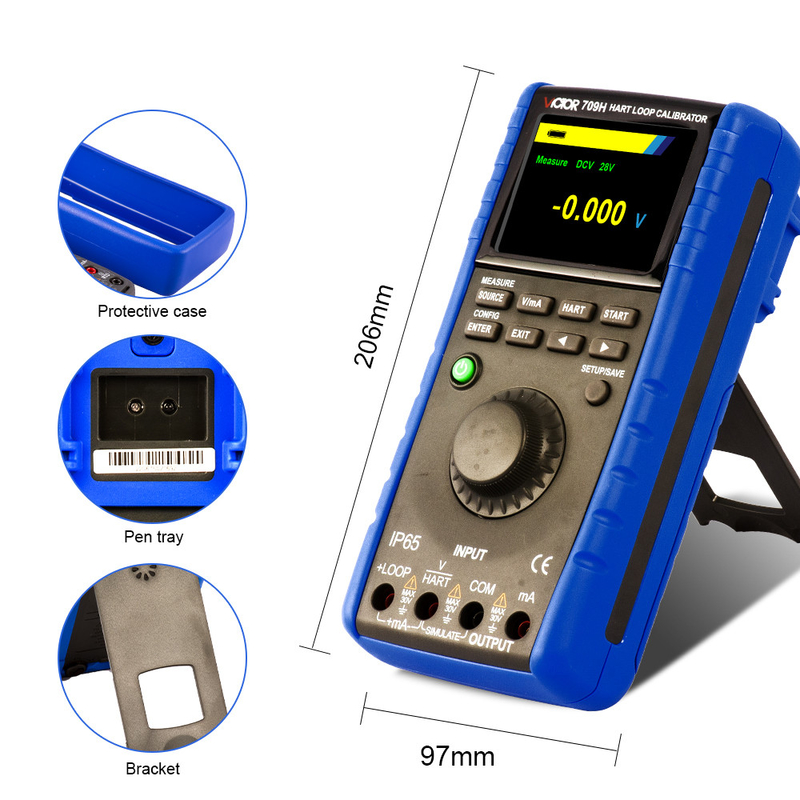

Size | 206 × 97 × 60 mm | ||
Weight | About600g |
